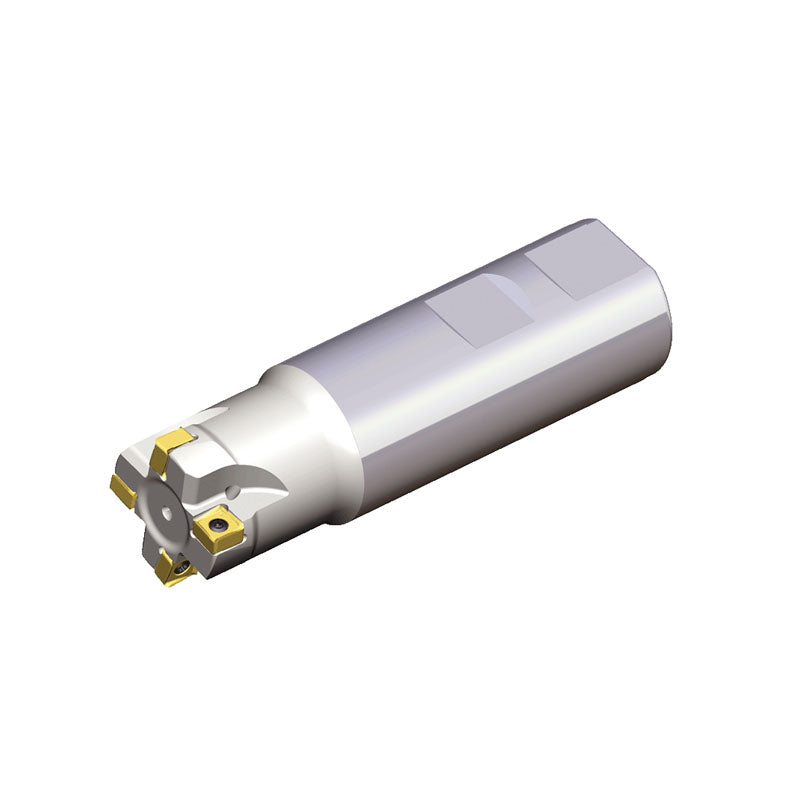

8D-TE90-07 90° End mills with 8 cutting edges of double-sided Square inserts SQ 07 for general milling
8D-TE90-07 90° End mills with 8 cutting edges of double-sided Square inserts SQ 07 for general milling
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product List
90° Shoulder Mill with
8 Cutting Edge Square Insert
» Economical double-sided insert
» Strong tool body and high positive insert
» High productivity with maximum No. of teeth
» 90° shouldering with wiper flat insert
» Good chip evacuation

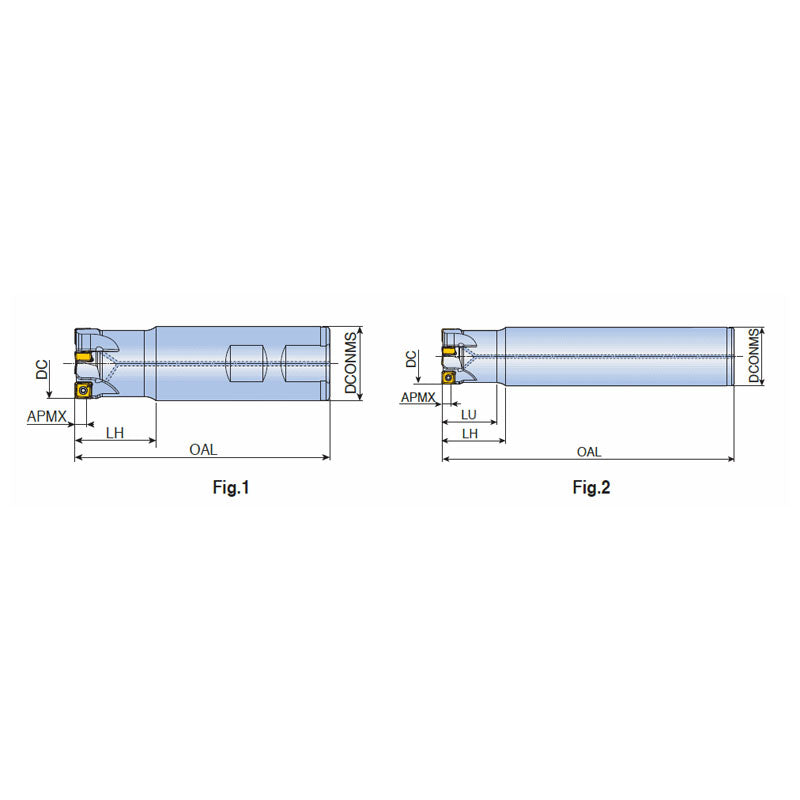

| Designation | DC | CICT | DCONMS | OAL | LH | APMX | Fig. | Shank type | MIID |
|---|---|---|---|---|---|---|---|---|---|
| 8D-TE90-216-W16-07 | 16.00 | 2 | 16.00 | 90.00 | 20.0 | 5.00 | 1 | W | SQKU 070308 PNR-M |
| 8D-TE90-216-16-07-L110 | 16.00 | 2 | 16.00 | 110.00 | 20.0 | 5.00 | 2 | C | SQKU 070308 PNR-M |
| 8D-TE90-217-16-07-L110 | 17.00 | 2 | 16.00 | 110.00 | 20.0 | 5.00 | 2 | C | SQKU 070308 PNR-M |
| 8D-TE90-220-W20-07 | 20.00 | 2 | 20.00 | 90.00 | 25.0 | 5.00 | 1 | W | SQKU 070308 PNR-M |
| 8D-TE90-220-20-07-L160 | 20.00 | 2 | 20.00 | 160.00 | 25.0 | 5.00 | 2 | C | SQKU 070308 PNR-M |
| 8D-TE90-320-W20-07 | 20.00 | 3 | 20.00 | 90.00 | 25.0 | 5.00 | 1 | W | SQKU 070308 PNR-M |
| 8D-TE90-221-20-07-L160 | 21.00 | 2 | 20.00 | 160.00 | 25.0 | 5.00 | 2 | C | SQKU 070308 PNR-M |
| 8D-TE90-325-W25-07 | 25.00 | 3 | 25.00 | 100.00 | 30.0 | 5.00 | 1 | W | SQKU 070308 PNR-M |
| 8D-TE90-325-25-07-L160 | 25.00 | 3 | 25.00 | 160.00 | 30.0 | 5.00 | 2 | C | SQKU 070308 PNR-M |
| 8D-TE90-425-W25-07 | 25.00 | 4 | 25.00 | 100.00 | 30.0 | 5.00 | 1 | W | SQKU 070308 PNR-M |
| 8D-TE90-326-25-07-L160 | 26.00 | 3 | 25.00 | 160.00 | 30.0 | 5.00 | 2 | C | SQKU 070308 PNR-M |
| 8D-TE90-432-W32-07 | 32.00 | 4 | 32.00 | 110.00 | 35.0 | 5.00 | 1 | W | SQKU 070308 PNR-M |
| 8D-TE90-432-32-07-L200 | 32.00 | 4 | 32.00 | 200.00 | 35.0 | 5.00 | 2 | C | SQKU 070308 PNR-M |
| 8D-TE90-632-W32-07 | 32.00 | 6 | 32.00 | 110.00 | 35.0 | 5.00 | 1 | W | SQKU 070308 PNR-M |
| 8D-TE90-433-32-07-L200 | 33.00 | 4 | 32.00 | 200.00 | 35.0 | 5.00 | 2 | C | SQKU 070308 PNR-M |
| 8D-TE90-540-W32-07 | 40.00 | 5 | 32.00 | 110.00 | 40.0 | 5.00 | 1 | W | SQKU 070308 PNR-M |
| 8D-TE90-840-W32-07 | 40.00 | 8 | 32.00 | 110.00 | 40.0 | 5.00 | 1 | W | SQKU 070308 PNR-M |
