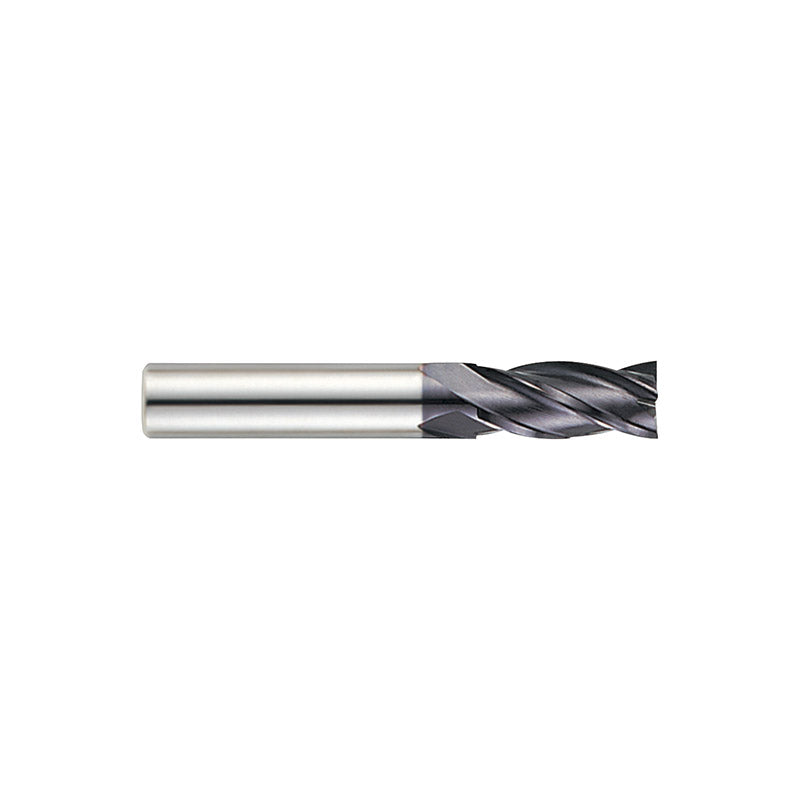

4 Flute Short Length Carbide X-Power Pro End Mills GM811 Series Plain Shank

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

4 Flute Short Length Carbide X-Power Pro End Mills GM811 Series Plain Shank

4 Flute Short Length Carbide X-Power Pro End Mills GM811 Series Plain Shank

4 Flute Short Length Carbide X-Power Pro End Mills GM811 Series Plain Shank

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: GM811020
Shank form: Straight-Cylindrical
Number of Flutes: 4

Product Information

Designed to machine tool steels, alloy steels, mold steels and other hardened materials

4 flute allows for better workpiece finishes

Increased production

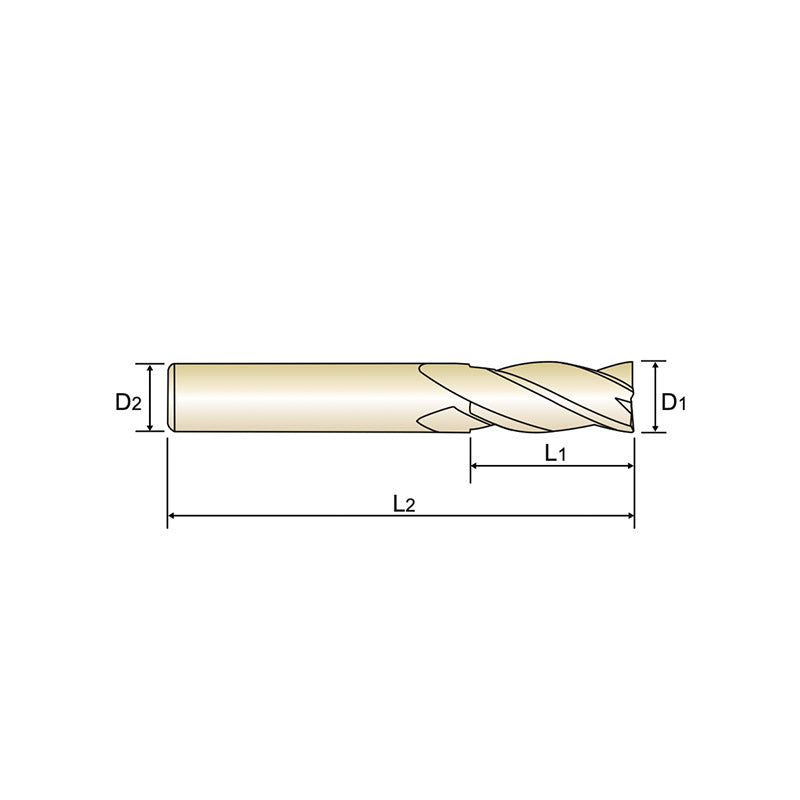

EDP No. Mill Diameter Shank Diameter Length of Cut Overall Length
D1 D2 L1 L2
GM811020 2.0 4 6 40
GM811901 2.0 6 6 40
GM811025 2.5 4 8 40
GM811902 2.5 6 8 40
GM811030 3.0 6 8 45
GM811035 3.5 6 10 45
GM811040 4.0 6 11 45
GM811045 4.5 6 11 45
GM811050 5.0 6 13 50
GM811060 6.0 6 13 50
GM811080 8.0 8 19 60
GM811100 10.0 10 22 70
GM811120 12.0 12 26 75
GM811140 14.0 14 26 85
GM811160 16.0 16 32 100
GM811200 20.0 20 38 105
GM811250 25.0 25 45 120


Mill Dia.Tolerance(mm) 0 ~ -0.03

Shank Dia.Tolerance h6
