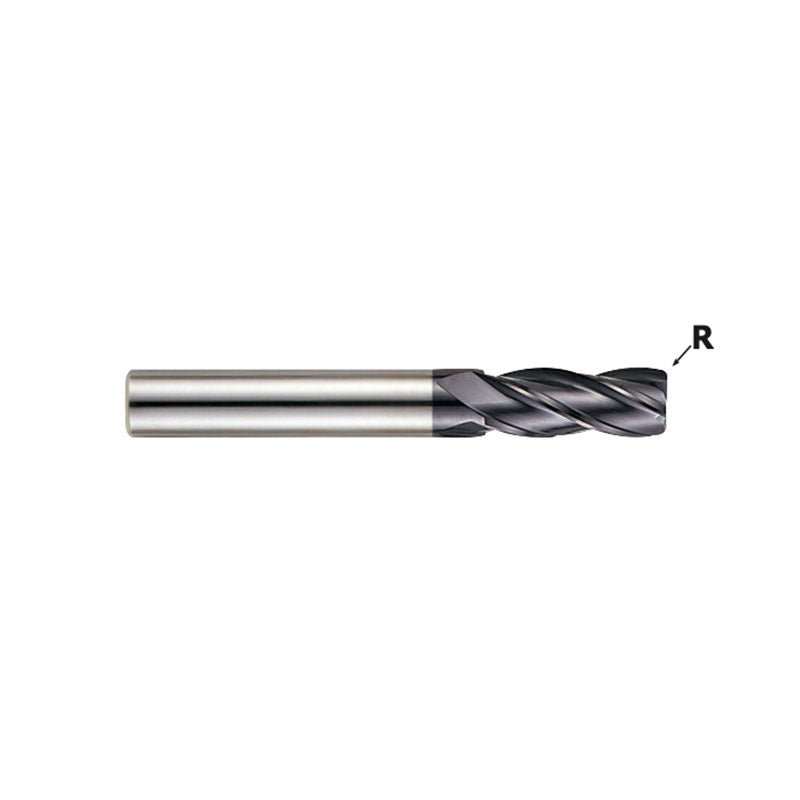

4 Flute Regular Length Corner Carbide X-Power Pro End Mills GM649 Series

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

4 Flute Regular Length Corner Carbide X-Power Pro End Mills GM649 Series

4 Flute Regular Length Corner Carbide X-Power Pro End Mills GM649 Series

4 Flute Regular Length Corner Carbide X-Power Pro End Mills GM649 Series

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: GM649004
Shank form: Straight-Cylindrical
Number of Flutes: 4

Product Information

▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials.

▶ Superior workpiece finishes.

▶ Increased feed rate.

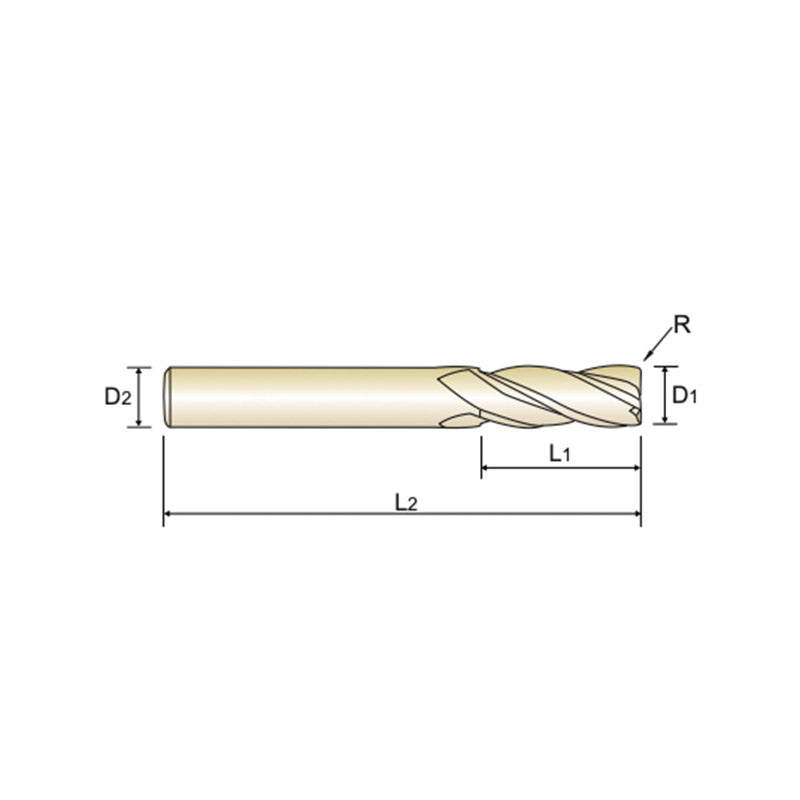

Mill Diameter Shank Diameter Length of Cut Overall Length Corner Radius (±.001)
D1 D2 L1 L2 R.008 R.010 R.020 R.0030 R.060 R.090
1/16 1/4 3/16 2-1/4 GM649004
1/8 1/4 1/2 2-1/4 GM649008 GM649901
3/16 1/4 5/8 2-1/2 GM649012 GM649903 GM649904
1/4 1/4 3/4 3 GM649016 GM649905 GM649906
5/16 5/16 13/16 3 GM649020 GM649907 GM649908
3/8 3/8 1 3 GM649024 GM649910 GM649911 GM649912
7/16 7/16 1 4 GM649028 GM649916 GM649917
1/2 1/2 1 4 GM649032 GM649913 GM649914 GM649915
