2 Flute Short Length Carbide X-Power Pro End Mills GM895 Series Plain Shank

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

2 Flute Short Length Carbide X-Power Pro End Mills GM895 Series Plain Shank

2 Flute Short Length Carbide X-Power Pro End Mills GM895 Series Plain Shank

2 Flute Short Length Carbide X-Power Pro End Mills GM895 Series Plain Shank

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: GM895010
Shank form: Straight-Cylindrical
Number of Flutes: 3

Product Information

Designed to machine tool steels, alloy steels, mold steels and other hardened materials

Possesses the advantage of 2 flute and 4 flute end mill

Superior workpiece finishes

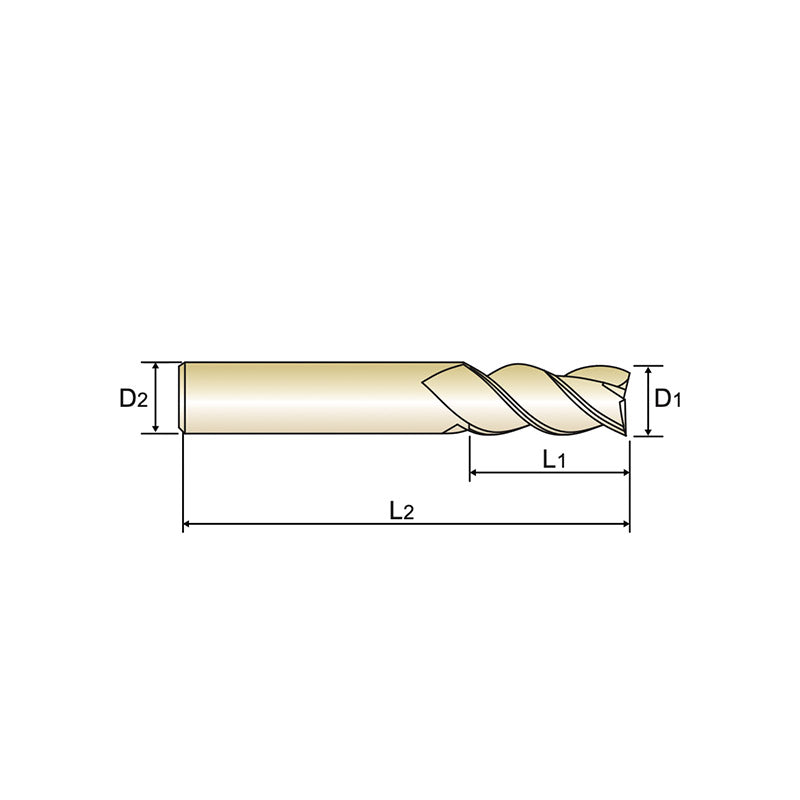

EDP No. Mill Diameter Shank Diameter Length of Cut Overall Length
D1 D2 L1 L2
GM895010 1.0 3 2.5 38
GM895015 1.5 4 5 50
GM895025 2.5 3 7 38
GM895030 3.0 3 10 38
GM895901 3.0 6 10 50
GM895040 4.0 4 12 50
GM895903 4.0 6 12 50
GM895050 5.0 5 14 50
GM895904 5.0 6 14 57
GM895060 6.0 6 16 57
GM895080 8.0 8 20 63
GM895100 10.0 10 22 72
GM895120 12.0 12 25 73
GM895160 16.0 16 32 82


Mill Dia.Tolerance(mm) 0 ~ -0.03

Shank Dia.Tolerance h6
