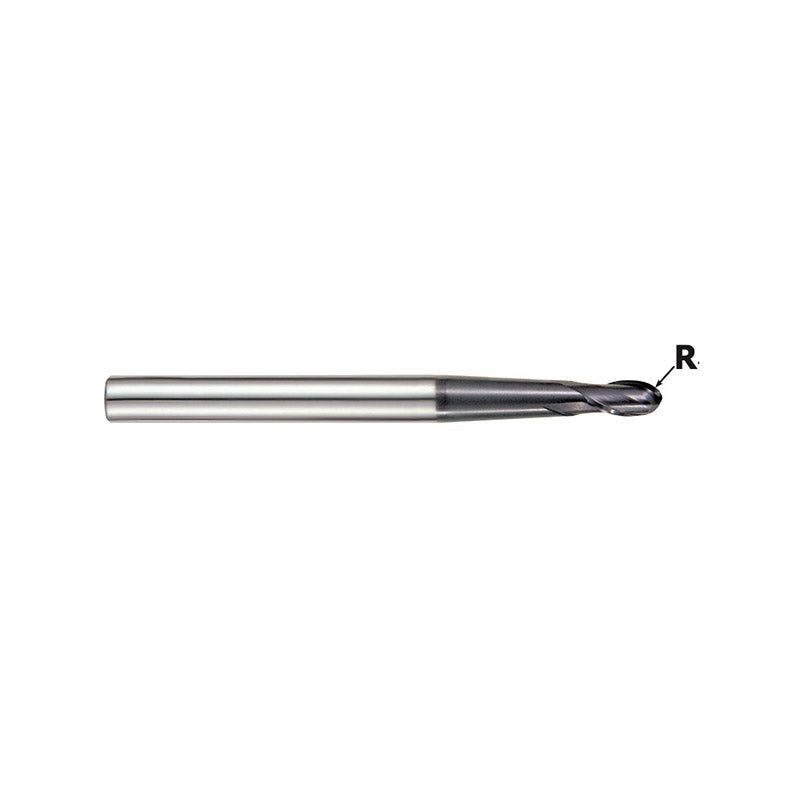

2 Flute Ball Nose with Taper Neck Carbide X-Power Pro End Mills GM902 Series Plain Shank

Inquiry
Please hurry! Only 200 left in stock

The Delivered at Place (DAP) service is provided by default. If Delivered Duty Paid (DDP) service is required, a new quote must be requested.

2 Flute Ball Nose with Taper Neck  Carbide X-Power Pro End Mills GM902 Series Plain Shank

2 Flute Ball Nose with Taper Neck Carbide X-Power Pro End Mills GM902 Series Plain Shank

2 Flute Ball Nose with Taper Neck Carbide X-Power Pro End Mills GM902 Series Plain Shank

a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}
Inquiry
Specification: GM902010
Shank form: Straight-Cylindrical
Number of Flutes: 2

Product Information

High efficiency milling in deep slotting due to long projection of the end mills

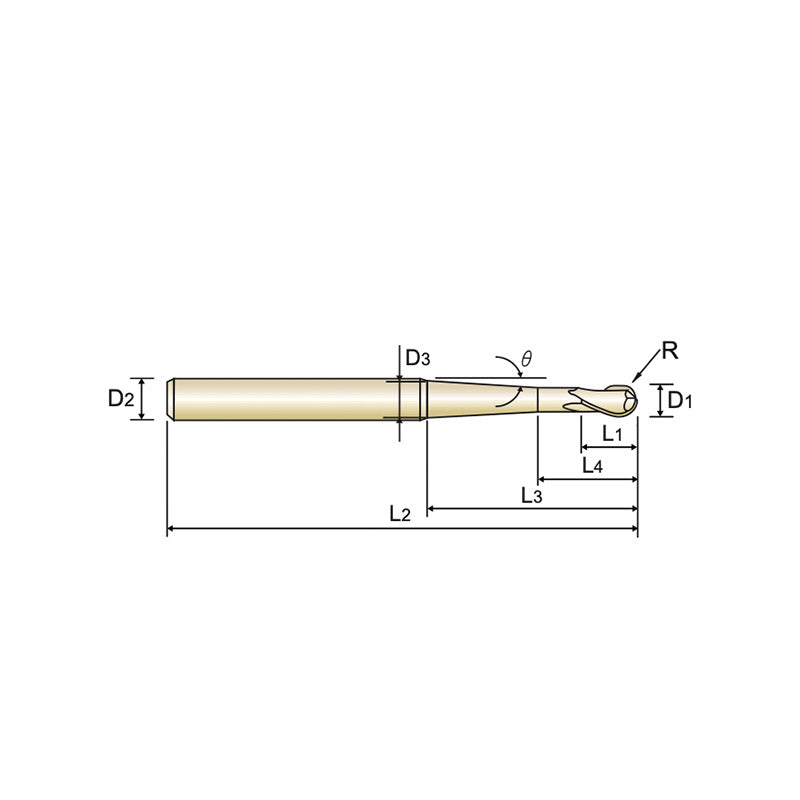

EDP No. Radius of Ball Nose Mill Diameter Shank Diameter Length of Cut Under Neck Parallel Length Length Below Shank Overall Length Neck Diameter Taper Neck Angle
R (±.001) D1 D2 L1 L4 L3 L2 D3 (θ)
GM902010 R0.5 1.0 6 2 4 23 60 2 1° 30'
GM902901 R0.5 1.0 6 2 4 23 60 4.3
GM902902 R0.5 1.0 6 2 4 42 80 5
GM902020 R1.0 2.0 6 4 6 23 60 2.9 1° 30'
GM902903 R1.0 2.0 6 4 6 23 60 5
GM902904 R1.0 2.0 6 4 6 41 80 5.7
GM902030 R1.5 3.0 6 6 8 32 70 5.6
GM902905 R1.5 3.0 6 6 8 52 90 5.3 1° 30'
GM902040 R2.0 4.0 6 8 10 28 70 5.9
GM902906 R2.0 4.0 6 8 10 49 90 6 1° 30'
GM902060 R3.0 6.0 8 12 15 34 90 8
GM902908 R3.0 6.0 8 12 15 53 110 8 1° 30'
GM902080 R4.0 8.0 10 14 17 36 100 10
GM902909 R4.0 8.0 10 14 17 55 120 10 1° 30'


Mill Dia.Tolerance(mm) 0 ~ -0.03

Shank Dia.Tolerance h6
