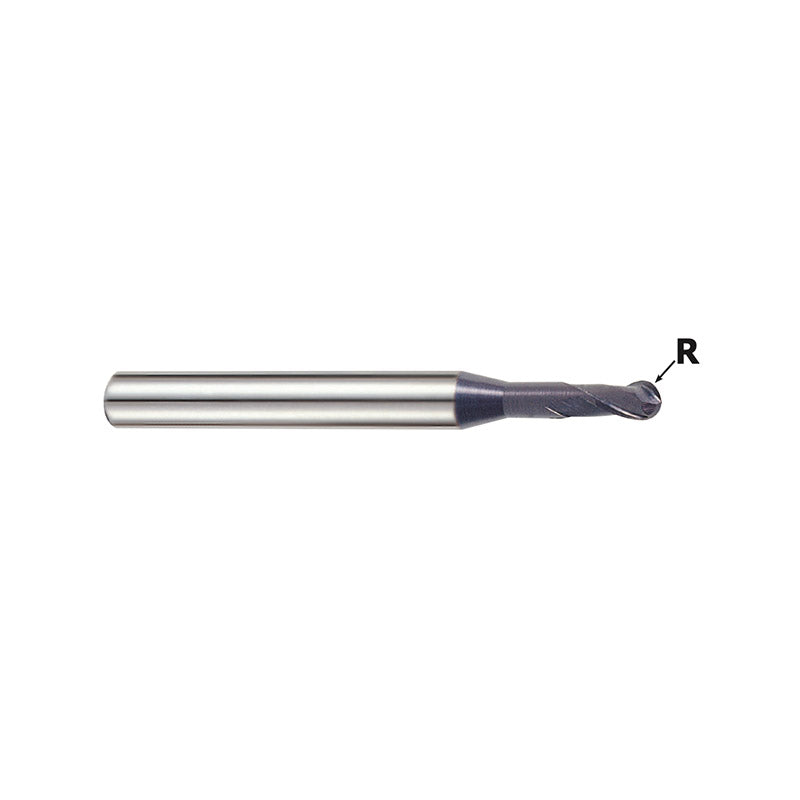

2 Flute Ball Nose for Rib Processing Carbide X-Power Pro End Mills GM886 Series Plain Shank
a.link.link-underline:hover .inquiry { color: ; } a.link.link-underline .inquiry {font-size: px; color: ;}Inquiry
Product Information

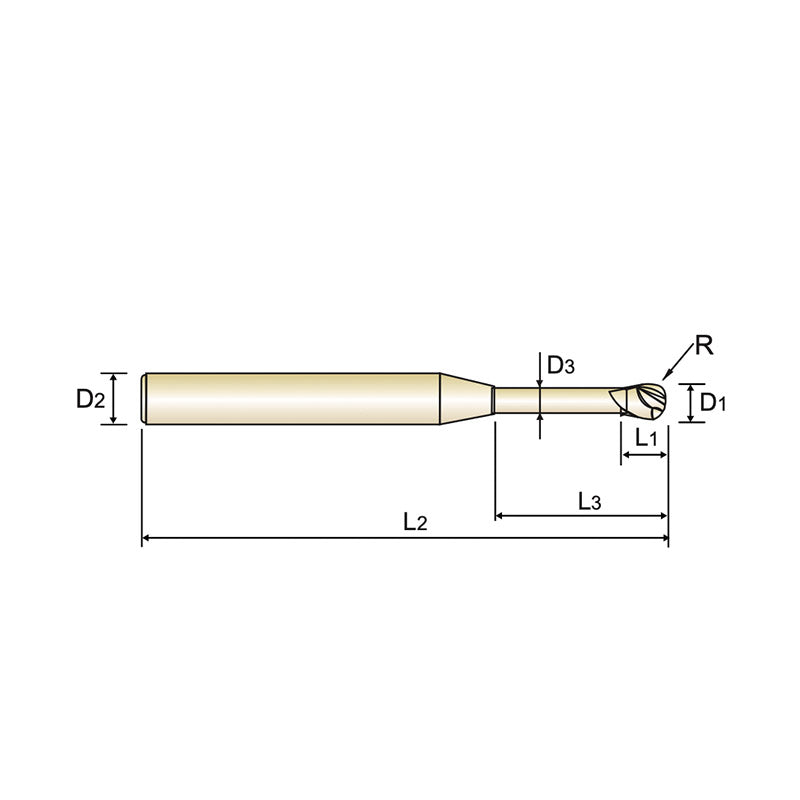

| EDP No. | Radius of Ball Nose | Mill Diameter | Shank Diameter | Length of Cut | Length Below Shank | Overall Length | Neck Diameter |
|---|---|---|---|---|---|---|---|
| R (±.001) | D1 | D2 | L1 | L3 | L2 | D3 | |
| GM886005 | R0.25 | 0.5 | 4 | 0.7 | 2 | 45 | 0.45 |
| GM886962 | R0.25 | 0.5 | 4 | 0.7 | 4 | 45 | 0.45 |
| GM886957 | R0.3 | 0.6 | 4 | 0.9 | 2 | 45 | 0.55 |
| GM886915 | R0.3 | 0.6 | 4 | 0.9 | 4 | 45 | 0.55 |
| GM886916 | R0.3 | 0.6 | 4 | 0.9 | 6 | 45 | 0.55 |
| GM886919 | R0.4 | 0.8 | 4 | 1.2 | 4 | 45 | 0.75 |
| GM886008 | R0.4 | 0.8 | 4 | 1.2 | 6 | 45 | 0.75 |
| GM886921 | R0.5 | 1.0 | 4 | 1.5 | 4 | 45 | 0.95 |
| GM886923 | R0.5 | 1.0 | 4 | 1.5 | 5 | 45 | 0.95 |
| GM886010 | R0.5 | 1.0 | 4 | 1.5 | 6 | 45 | 0.95 |
| GM886902 | R0.5 | 1.0 | 4 | 1.5 | 8 | 45 | 0.95 |
| GM886903 | R0.5 | 1.0 | 4 | 1.5 | 10 | 45 | 0.95 |
| GM886904 | R0.5 | 1.0 | 4 | 1.5 | 12 | 45 | 0.95 |
| GM886927 | R0.5 | 1.0 | 4 | 1.5 | 16 | 50 | 0.95 |
| GM886012 | R0.6 | 1.2 | 4 | 1.8 | 8 | 45 | 1.15 |
| GM886930 | R0.75 | 1.5 | 4 | 2.3 | 6 | 45 | 1.45 |
| GM886015 | R0.75 | 1.5 | 4 | 2.3 | 8 | 45 | 1.45 |
| GM886931 | R0.75 | 1.5 | 4 | 2.3 | 10 | 45 | 1.45 |
| GM886906 | R0.75 | 1.5 | 4 | 2.3 | 12 | 45 | 1.45 |
| GM886940 | R1.0 | 2.0 | 4 | 3 | 6 | 45 | 1.95 |
| GM886020 | R1.0 | 2.0 | 4 | 3 | 8 | 45 | 1.95 |
| GM886941 | R1.0 | 2.0 | 4 | 3 | 10 | 45 | 1.95 |
| GM886942 | R1.0 | 2.0 | 4 | 3 | 12 | 50 | 1.95 |
| GM886909 | R1.0 | 2.0 | 4 | 3 | 16 | 50 | 1.95 |
| GM886910 | R1.0 | 2.0 | 4 | 3 | 20 | 55 | 1.95 |
| GM886945 | R1.0 | 2.0 | 4 | 3 | 25 | 60 | 1.95 |
| GM886967 | R1.0 | 2.0 | 4 | 3 | 30 | 70 | 1.95 |
| GM886947 | R1.5 | 3.0 | 6 | 4.5 | 10 | 50 | 2.85 |
| GM886948 | R1.5 | 3.0 | 6 | 4.5 | 12 | 50 | 2.85 |
| GM886030 | R1.5 | 3.0 | 6 | 4.5 | 16 | 55 | 2.85 |
| GM886911 | R1.5 | 3.0 | 6 | 4.5 | 20 | 60 | 2.85 |
| GM886968 | R1.5 | 3.0 | 6 | 4.5 | 25 | 65 | 2.85 |
| GM886040 | R2.0 | 4.0 | 6 | 6 | 16 | 60 | 3.85 |
| GM886912 | R2.0 | 4.0 | 6 | 6 | 20 | 65 | 3.85 |
| GM886913 | R2.0 | 4.0 | 6 | 6 | 25 | 70 | 3.85 |
| GM886971 | R2.0 | 4.0 | 6 | 6 | 30 | 70 | 3.85 |
| GM886972 | R2.0 | 4.0 | 6 | 6 | 35 | 80 | 3.85 |
| GM886050 | R2.5 | 5.0 | 6 | 7.5 | 16 | 60 | 4.85 |
| GM886060 | R3.0 | 6.0 | 6 | 9 | 20 | 80 | 5.85 |
| GM886954 | R3.0 | 6.0 | 6 | 9 | 30 | 90 | 5.85 |
Mill Dia.Tolerance(mm) 0 ~ -0.02
Shank Dia.Tolerance h6
